Armorgard Gorilla Gas Cages

The Armorgard Gorilla Gas Cages are available in 16 standard sizes, but can easily be customised to any requirement.

The unique galvanized security cage specially designed for storing gas cylinders. Robustly constructed using 25mm box sections and 3mm wire mesh, the Gorilla Gas Cage features a unique modular bolt-together design using individual galvanized panels, making it quick and easy to erect and dismantle. Suitable for use on site or in the storage yard, it comes complete and ready to erect with all fixings, and packs flat when not in use.

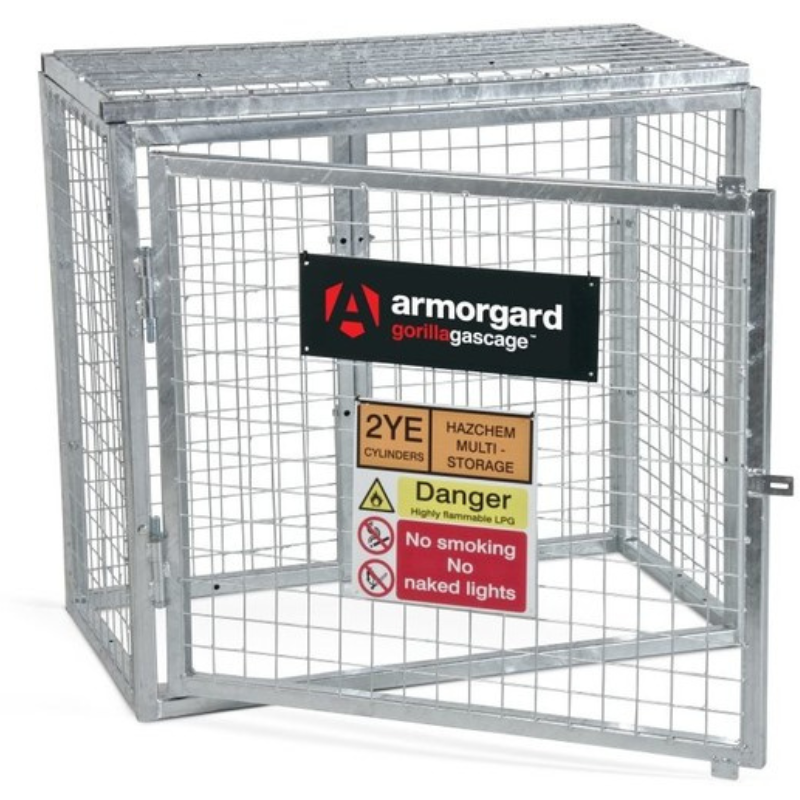

GGC1 gas bottle cage. Weight 40kg. Dimensions: External: 1012mm x 563mm x 931mm Internal: 950mm x 500mm x 900mm

GGC2 gas bottle with shelf. Weight 62kg. Dimensions: External: 912mm x 576mm x 1831mm Internal: 850mm x 500mm x 1750mm

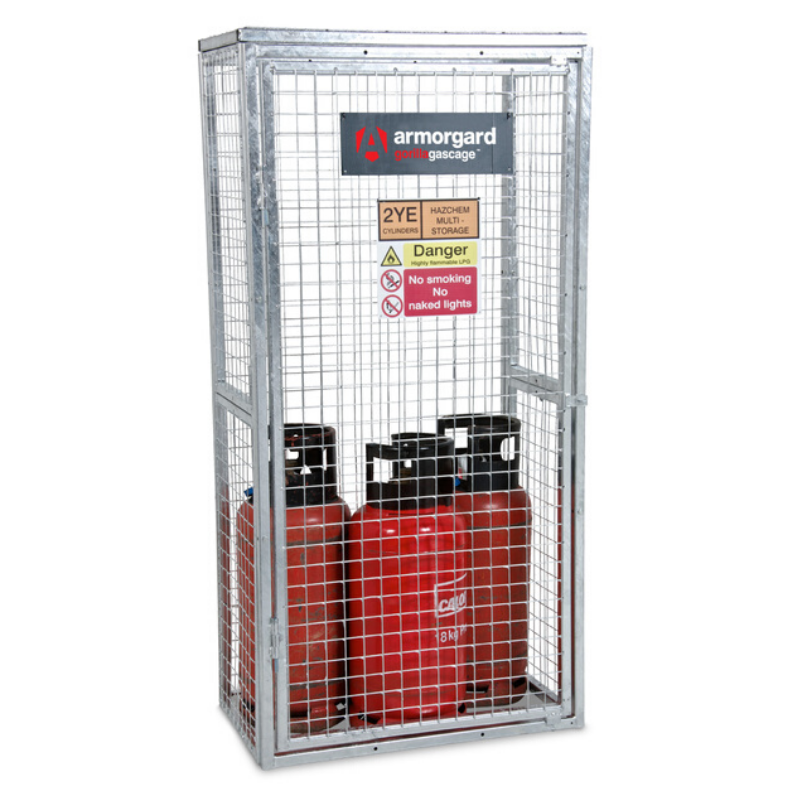

GGC3 gas bottle cage. Weight 60kg. Dimensions: External: 912mm x 566mm x 1831mm Internal: 850mm x 500mm x 1800mm

GGC4 gas bottle cage. Weight 68kg. Dimensions: External: 1212mm x 1266mm x 1231mm Internal: 1150mm x 1200mm x 1200mm

GGC5 gas bottle cage. Weight 67kg. Dimensions: External: 912mm x 966mm x 1831mm Internal: 850mm x 900mm x 1800mm

GGC6 gas bottle cage. Weight 87kg. Dimensions: External: 1212mm x 1266mm x 1831mm Internal: 1150mm x 1200mm x 1800mm

GGC7 gas bottle cage. Weight 98kg. Dimensions: External: 1812mm x 966mm x 1831mm Internal: 1750mm x 900mm x 1800mm

GGC8 gas bottle cage. Weight 108kg. Dimensions: External: 1812mm x 1266mm x 1831mm Internal: 1750mm x 1200mm x 1800mm

GGC9 gas bottle cage. Weight 135kg. Dimensions: External: 1812mm x 1866mm x 1831mm Internal: 1750mm x 1800mm x 1800mm

GGC10 gas bottle cage. Weight 165kg. Dimensions: External: 2412mm x 1866mm x 1831mm Internal: 2350mm x 1800mm x 1800mm

GGC11 gas bottle cage. Weight 188kg. Dimensions: External: 2712mm x 1866mm x 1831mm Internal: 2650mm x 1800mm x 1800mm

GGC12 gas bottle cage. Weight 182kg. Dimensions: External: 2412mm x 2466mm x 1831mm Internal: 2350mm x 2400mm x 1800mm

GGC13 gas bottle cage. Weight 226kg. Dimensions: External: 2412mm x 3666mm x 1831mm Internal: 2350mm x 3600mm x 1800mm

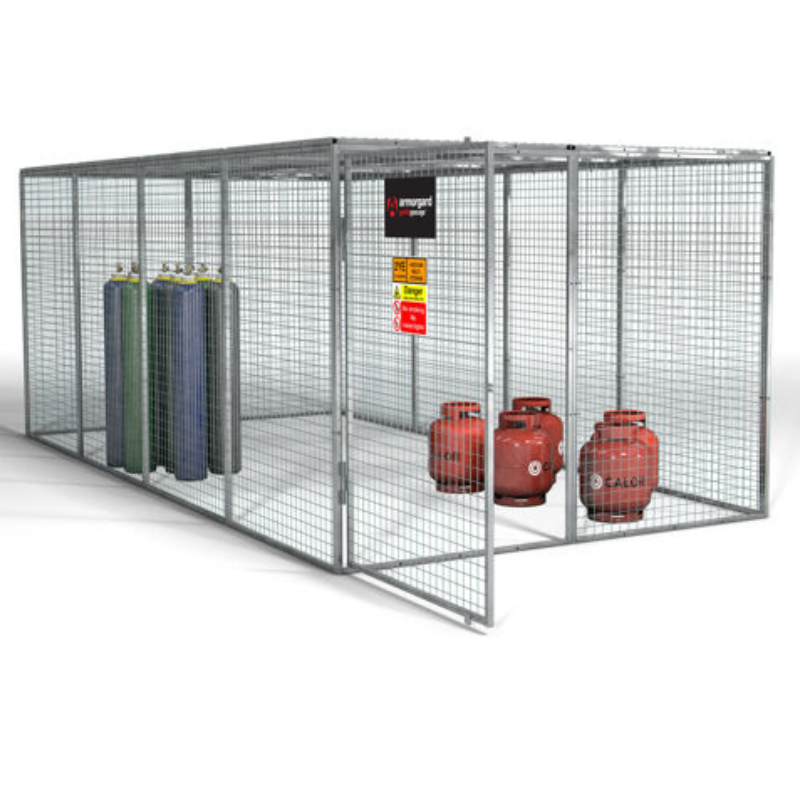

GGC14 gas bottle cage. Weight 270kg. Dimensions: External: 2412mm x 4866mm x 1831mm Internal: 2350mm x 4800mm x 1800mm

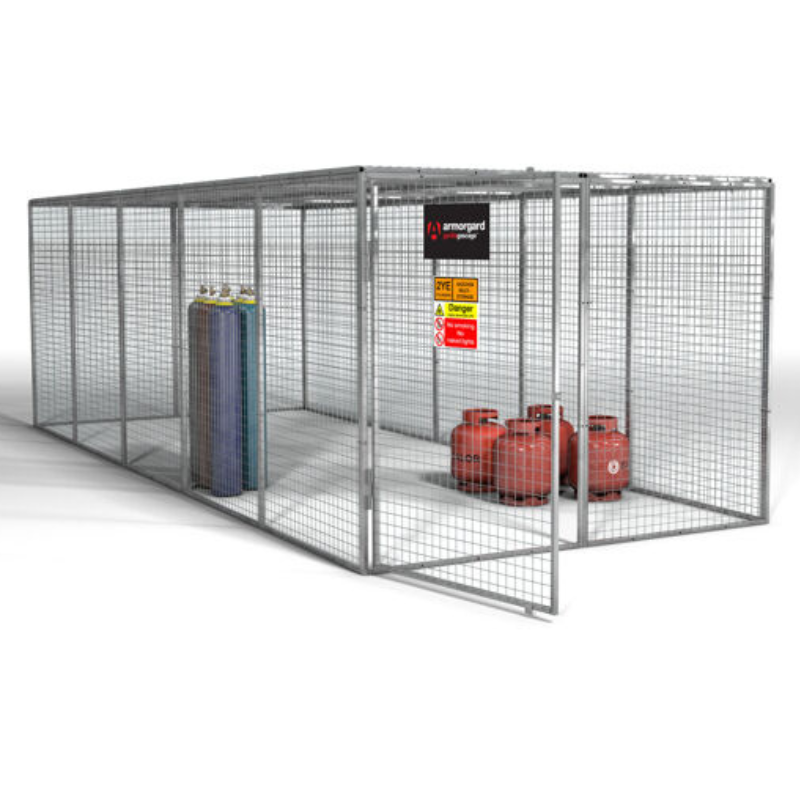

GGC15 gas bottle cage. Weight 314kg. Dimensions: External: 2412mm x 6066mm x 1831mm Internal: 2350mm x 6000mm x 1800mm

GGC16 gas bottle cage. Weight 279kg. Dimensions: External: 3612mm x 3666mm x 1831mm Internal: 3555mm x 3600mm x 1800mm

GGC17 gas bottle cage. Weight 205kg. Dimensions: External: 3662mm x 1810mm x 1831mm Internal: 3600mm x 1750mm x 1800mm

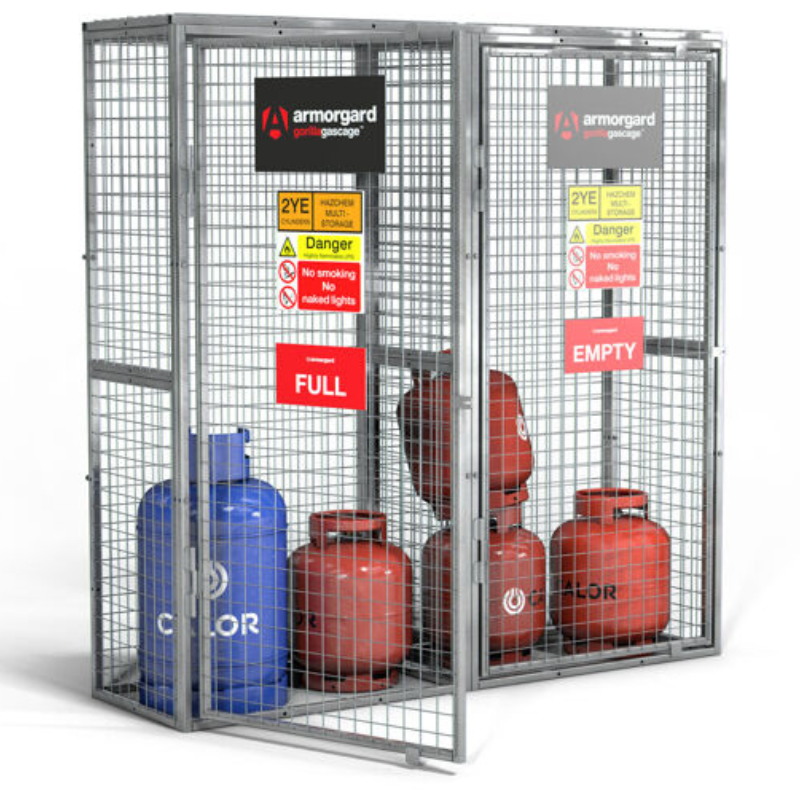

GGC33 double compartment gas bottle cage. Weight 120kg. Dimensions: External: 1815mm x 570mm x 1835mm Internal: 900mm x 500mm x 1800mm (per compartment)

GGC66 double compartment gas bottle cage. Weight 174kg. Dimensions: External: 2400mm x 1275mm x 1830mm Internal: 1200mm x 1200mm x 1800mm (per compartment)
